Manufacturing Network Application

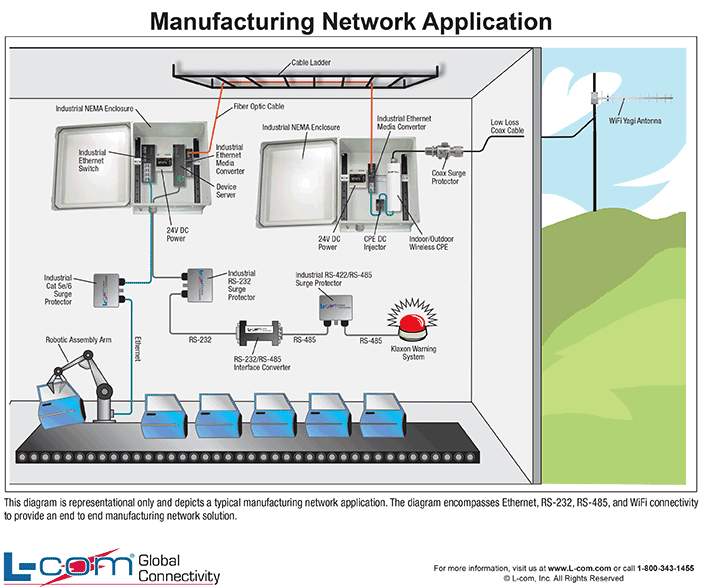

This diagram is representational only and depicts a typical manufacturing network application. The diagram encompasses Ethernet, RS-232, RS-485, and WiFi connectivity to provide an end to end manufacturing network solution.

Print and post this Manufacturing Network Application diagram by downloading a pdf here.

Manufacturing Nextwork Application Diagram

Products referenced in this application

Note: The products referenced below coincide with the typical application diagram. Actual products for your specific application may vary.

NB181608-000DR        NEMA 4X Rated Industrial Enclosure
DIN-35-NB18                 35mm DIN Rail
LCMC-M-2                       Industrial Ethernet Media Converter
IES-2210-M2                   Industrial Ethernet Switch
SE6101-00B                   Ethernet to Serial Device Server
EW-24VDC-30                24V DC Power Supply
TRD877HF                      Hi-Flex Industrial Ethernet Cable
CS2N9MM                        Premium Double Shielded D-Sub Cable
SC-232-E                          RS232 to RS422/485 Interface Converter
ALW-CAT5EJ                    Industrial Cat5e Surge Protector
ALW-D2-12                       Industrial RS232 Surge Protector
ALW-D2-05                       Industrial RS422/485 Surge Protector
WLAN-LCCPE28-1         Indoor/Outdoor Wireless CPE
AL6-NFNFBW-9              Coaxial Surge Protector
CA3N0XX                          400 Series Low Loss Coax Cable
HG2412SY-NF                 2.4 GHz 12dBi Yagi Antenna
FOB500B12-M                 Bulk 12 count 50/125 Fiber Cable
FOC-9505041                 50/125 SC Fiber Connector
TKT-UNICAM                   Corning Unicam Fiber Termination Kit
CLB-10-W24                  10’ Cable Ladder
