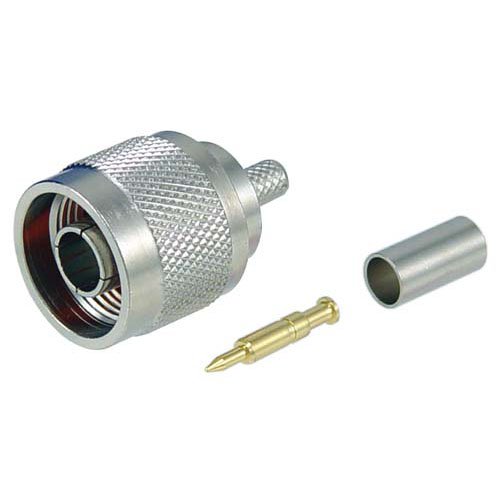

Type N Male Crimp for 200-Series Cable


CON,N-MALE CRIMP LMR200
Roll over image to zoom in
CON,N-MALE CRIMP LMR200 CON,N-MALE CRIMP LMR200
L-com Item # ANM-1202

List Price$4.35
Your Price 1-9$4.35
10-24$4.00
25-99$3.66
100 +Call Us
Availability: In Stock
Available for Same Day Shipping
Quantity
Need a different cable type for this connector?



L-com Item #ANM-1202
ManufacturerL-com
UPC # (More)822335077010
RoHS StatusRoHS Compliant RoHS Compliant(More)
Features:
  • Can be used with WBC200‚ LMR®200, L-com CA-200, Belden 7807 cable types
Applications:
  • WLAN
  • Radio Pigtails
  • RF Applications
  • Low Loss Coax Applications
  • Wi-Fi Applications

Specifications

Electrical
Impedance 50 Ohms
Frequency Range DC ~ 11 GHz
Voltage Rating 1500 Volts Peak
Dielectic Withstanding Voltage 2500 Volts RMS
Insertion Loss .20 dB Max.
Mechanical
Mating 5/8-24 UNEF Threading Coupling
Mating Torque 15 inch pounds (170 N.cm) Max.
Cable Attachment Hex Braid Crimp
Center Conductor Cable Attachment Crimp or Solder
Cable Retention 45 lbs. Pull
Material
Body Nickel Plated Brass
Contact Gold Plated Brass
Insulator TFE
Ferrule Nickel Plated Brass
Environmental
Temperature Range -55C(-67F) to +85C(+185F)
Temperature Cycling MIL-Std. 202 Method 102 (Test Condition C)
Weatherproof All N-Type Connectors are Weatherproof
Moisture Resistance MIL-Std. 202 Method 106 (Test Condition B)
Corrosion MIL-Std. 202 Method 101 (Test Condition C)
Vibration MIL-Std. 202 Method 204 (Test Condition B)
Altitude MIL-Std. 202 Method 105 (Test Condition C)
RoHS Compliant Yes
