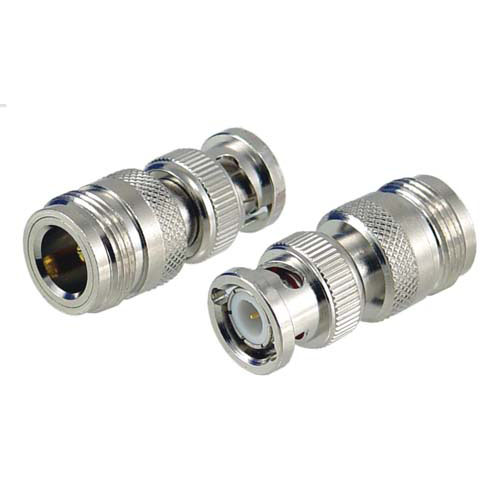

Coaxial Adapter, Type-N Female / BNC Male


ADP,N-Female to BNC-Male
Roll over image to zoom in
ADP,N-Female to BNC-Male ADP,N-Female to BNC-Male ADP,N-Female to BNC-Male
L-com Item # AXA-NFBM

List Price$4.35
Your Price 1-9$4.35
10-24$4.00
25-99$3.66
100 +Call Us
Availability: In Stock
Available for Same Day Shipping
Quantity
Need a different connector end for this adapter?

This Type N female to BNC male coaxial adapter provides the ability to connect between a Type N male and BNC female interface. Interconnection of these interfaces is often found in test lab or in field environments where devices of differing interface types are interconnected.



L-com Item #AXA-NFBM
ManufacturerL-com
UPC # (More)822335070431
RoHS StatusRoHS Compliant RoHS Compliant(More)
Features:
  • Allows interconnection of devices with BNC female and Type N male interfaces
  • Most adapters utilize machined components for durability and long life
  • Most adapters utilize gold plated contacts for reduced signal loss
  • Wide selection of in stock adapters quickly solves interconnection problems
Applications:
  • Coaxial extension
  • Coaxial interface conversion
  • OEM coax applications
  • Coax retrofit applications

Specifications

Electrical
Impedance50 Ohms
Frequency RangeDC ~ 3 GHz
Voltage Rating500 Volts Peak
Dielectic Withstanding Voltage1000 Volts RMS
Insertion Loss.15 dB Max.
Mechanical
Mating5/8-24 UNEF Threaded Coupling
2-Stud Bayonet Coupling
Mating Torque15 inch pounds (170 N.cm) Max.
Material
BodyNickel Plated Brass
ContactGold Plated Brass
InsulatorTFE
Environmental
Temperature Range-55C(-67F) to +85C(+185F)
Temperature CyclingMIL-Std. 202 Method 102 (Test Condition C)
WeatherproofAll N-Type Connectors are Weatherproof
Moisture ResistanceMIL-Std. 202 Method 106 (Test Condition B)
CorrosionMIL-Std. 202 Method 101 (Test Condition C)
VibrationMIL-Std. 202 Method 204 (Test Condition B)
AltitudeMIL-Std. 202 Method 105 (Test Condition C)
RoHS CompliantYes
