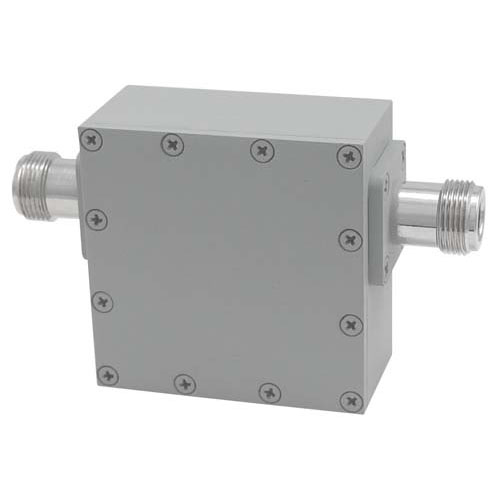

5.8 GHz Ultra High Q 4-Pole Outdoor Bandpass Filter, Full Band

Features

Ultra-High Quality Microwave Cavity Filter
Ultra Low Insertion Loss (0.5 dB nominal) & 150 MHz Bandwidth
Reduce Interference and Improve Performance
Industrial Grade, Rugged Aluminum Weatherproof Construction for Outdoor or Indoor Use
Provides Lightning Protection (DC Short)


Click image(s) to zoom

List Price		$149.99
Your Price	1-9	$149.99
	10-24	$137.99
	25-99	$125.99
	100-249	$113.99
	250-499	$101.99

Quantity

Availability:

In Stock

Available for Same Day Shipping

The HyperLink 5.8 GHz 4-Pole Ultra-High Q full band channel filter is ideal for co-located equipment installations. This filter is designed for full band applications. By reducing interference outside the 5800 MHz ISM band, improved performance of co-located equipment can be achieved. These bandpass filters are wide enough to pass high data rate 802.11a signals without degradation. The BPF5800 features ruged aluminum weatherproof construction and can be used indoors or outdoor.

- Ideal for high data rate 802.11a, ISM and UNII Wireless LAN applications
- Ideal for Minimizing Adjacent Channel Interference
- Compact Size
- N-Female Connectors
- Optional Mast Mounting Kit Available

Details

L-com Item #	BPF5800A
Manufacturer	L-com
UPC # (More)	822335067455
RoHS Status	RoHS Compliant (More)

Applications

802.11a
WLAN
Wi-Fi
RF

Specifications

Center Frequencies	5800 MHz
Out of Band Rejection	> 6 dB @ 5570 MHz > 6 dB @ 6030 MHz
Bandwidth	150 MHz
Insertion Loss	0.5 dB nominal
Passband Ripple	< 1.0 dB
Return Loss	> 10 dB
Impedance	50 Ohm
Power Handling	50 Watts
Connectors	(2) N-Female
Number of Cavities	4
Operating Temperature	-40° F to 185° F (-40° C to +85° C)
Dimensions	2.3" x 2.3" x 1.1" (58 x 58 x 28 mm)
Weight	0.69 lbs. (0.31 Kg)

Insertion Loss / Return Loss Plots
