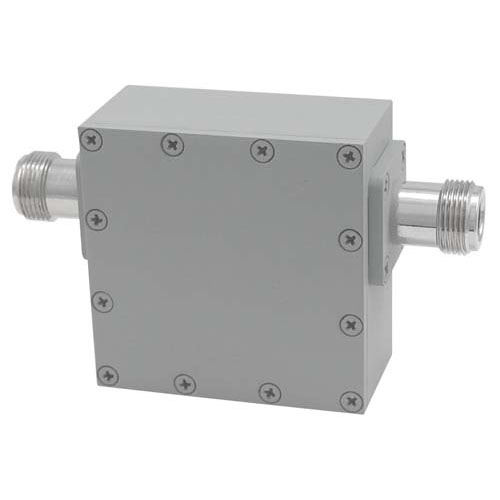

The HyperLink 4.9 GHz 4-Pole Ultra-High Q full band channel filter is ideal for co-located equipment installations. This filter is designed for full band applications. By reducing interference outside the 4.9 GHz band, improved performance of co-located equipment can be achieved. These bandpass filters are wide enough to pass high data rate signals without degradation. The BPF4900A features rugged aluminum weatherproof construction and can be used indoors or outdoor.
Reduce Interference and Improve Performance
Compact Size
N-Female Connectors
Optional Mast Mounting Kit Available
| L-com Item # | BPF4900A | | | |
| Manufacturer | L-com | | | |
| UPC # (More) | 822335074668 | | | |
| RoHS Status | RoHS Compliant  (More) | | | |
|
|
Features:
Ultra-High Quality Microwave Cavity Filter & 50 MHz Bandwidth
Ultra Low Insertion Loss (< 1.0 dB nominal)
Provides Lightning Protection (DC Short)
Industrial Grade, Rugged Aluminum Weatherproof Construction for Outdoor or Indoor Use
Ideal for Homeland Security, Public Safety Services: Fire, Police and Security applications
|
|
Applications:
Homeland Security
WLAN
Public safety
RF
|
|
Specifications
| Center Frequencies |
4965 MHz |
| Out of Band Rejection |
> 6 dB @ 4890 MHz
> 6 dB @ 5040 MHz |
| Bandwidth |
50 MHz |
| Insertion Loss |
< 1.0 dB nominal |
| Passband Ripple |
≤ 1.0 dB |
| Return Loss |
≥ 10 dB |
| Impedance |
50 Ohm |
| Power Handling |
50 Watts |
| Connectors |
(2) N-Female |
| Number of Cavities |
4 |
| Operating Temperature |
-40° F to 185° F (-40° C to +85° C) |
| Dimensions |
2.3" x 2.3" x 1.1" (60 x 60 x 30 mm) |
| Weight |
0.69 lbs. (0.31 Kg) |
| RoHS Compliant |
Yes |
Insertion Loss / Return Loss Plots
|
