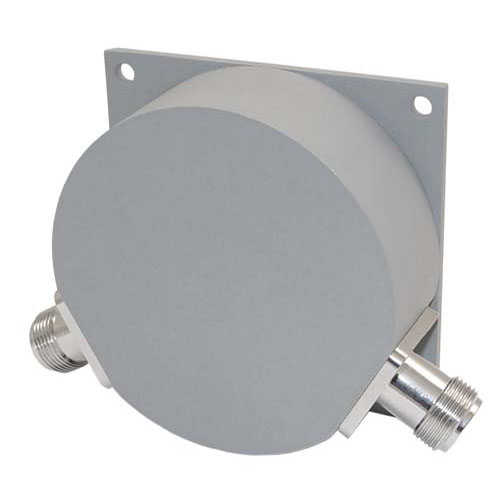

2.4 GHz Ultra High Q 4-Pole Outdoor Bandpass Filter, Full Band



Click image(s) to zoom

L-com Item # BPF2400A

List Price		$149.99
Your Price 1 +		$100.00

Availability:

In Stock

Available for Same Day Shipping

Quantity

Need a different type of signal filter?

The HyperLink 2.4 GHz 4-Pole Ultra-High Q Wi-Fi full band channel filters are ideal for co-located equipment installations. These filters are designed for full band applications. By reducing interference outside the 2400 MHz ISM band, improved performance of co-located equipment can be achieved. These bandpass filters are wide enough to pass high data rate 802.11g signals without degradation.

The BPF2400 features rugged aluminum construction and is for use indoors or in weather-resistant enclosures. For outdoor applications, the BPF2400A features weatherproof construction. It is ideal for high data rate 802.11b and 802.11g Wireless LAN applications. It has N-Female Connectors, and has an optional mast mounting kit available for the outdoor model.

L-com Item #	BPF2400A
Manufacturer	L-com
UPC # (More)	822335067448
RoHS Status	RoHS Compliant (More)

Features:

Ultra-High Quality Microwave Cavity Filter
Ultra Low Insertion Loss (.25 dB nominal)
For 2400 MHz Full Band Applications
Reduce Interference Outside the ISM Band and Improve Performance
Provides Lightning Protection (DC Short)

Applications:

802.11b/g/n
WLAN
Wi-Fi
RF

Specifications

Center Frequencies	2448 MHz
Bandwidth (0.5 dB)	100 MHz
Insertion Loss	.25 dB nominal
Passband Ripple	< 0.25 dB
Return Loss	> 15 dB
Out of Band Rejection	> 80 dB @ < 2000 MHz > 60 dB @ > 2700 MHz
Impedance	50 Ohm
Power Handling	50 Watts
Connectors	(2) N-Female
Number of Cavities	4
Operating Temperature	-40° F to 185° F (-40° C to +85° C)
Dimensions	3.0" x 3.0" x 1.2" (78 x 78 x 31 mm)
Weight	0.84 lbs. (0.38 Kg)

Insertion Loss / Return Loss Plots

Datasheets

Catalog Page

2D Drawing (.pdf)

Accessories for the 2.4 GHz Ultra High Q 4-Pole Outdoor Bandpass Filter, Full Band

Mast Mounting Kit for HyperLink Signal Filters & Splitters
