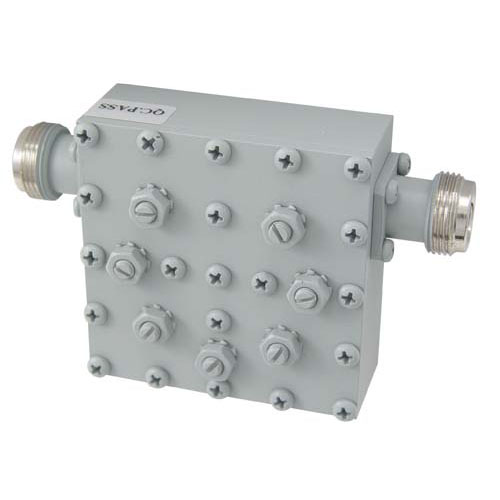

2.4 GHz Ultra High Q 4-Pole Indoor Bandpass Filter, Channel 3 - 2422 MHz

Features

Ultra-High Quality Microwave Cavity Filter, 30 MHz Bandwidth
Ultra Low Insertion Loss (2 dB nominal)
Reduce Interference and Improve Performance
Industrial Grade, Rugged Aluminum Construction
Provides Lightning Protection (DC Short)


Click image(s) to zoom

List Price		$69.99
Your Price	1-9	$69.99
	10-24	$64.39
	25-99	$58.79
	100 +	$53.19

Quantity

Availability:

In Stock

Available for Same Day Shipping

The HyperLink 2.4 GHz 4-Pole Ultra-High Q Wi-Fi channel filter are ideal for co-located equipment installations. By reducing out of band interference, improved performance of co-located equipment can be achieved. These bandpass filters are wide enough to pass high data rate 802.11g signals without degradation. These filters are designed to be installed indoors or in weather-resistant enclosures. Available in five versions for Channel 1, 3, 6, 9 and 11.

Details

L-com Item #	BPF24-403
Manufacturer	L-com
UPC # (More)	822335070271
RoHS Status	RoHS Compliant (More)

Applications

Ideal for high data rate 802.11b and 802.11g Wireless LAN applications

Specifications

Center Frequencies	2422 MHz - Channel 3
Out of Band Rejection	>45 dB @ 2372 MHz >45 dB @ 2472 MHz
Bandwidth (-3 dB)	30 MHz
Insertion Loss	2 dB nominal
Passband Ripple	< 0.25 dB
Return Loss	> 15 dB
Harmonic Rejection	> 90 dBc
Impedance	50 Ohm
Power Handling	50 Watts
Connectors	(2) N-Female
Number of Cavities	4
Operating Temperature	-40° F to 185° F (-40° C to +85° C)
Dimensions	2.2" x 2.2" x .8" (56 x 56 x 21 mm)
Weight	0.50 lbs. (0.23 Kg)

Insertion Loss / Return Loss Plots
